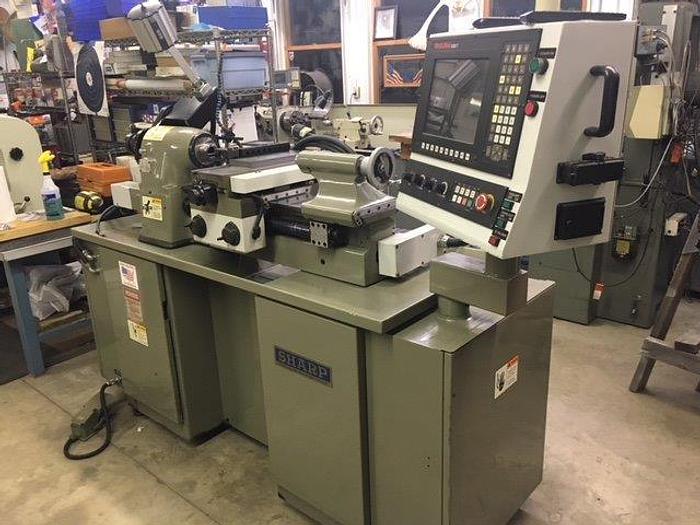

2001 Sharp 1118H-CNC 11x18 CNC Toolroom Lathe W/ Anilam 4200T 118H

$14,500 (USD)

New Hope, MN

orCall 612-747-6130

Description

Here is a very nice running Sharp 2 Axis CNC Lathe. This lathe can be inspected under power in our warehouse. If you would like to set up an inspection, please contact us. This machine is in excellant condition. Thank you. WATCH THE VIDEO Very Low Hours!! Sharp 1118-CNC 11x18 CNC Toolroom Lathe W/ Anilam 4200T Control Serial# 901003 New in 2001 Model 1118CNC WATCH VIDEO: https://www.youtube.com/watch?v=a2Emy7xujsA New Factory Specifications: (Specifications subject to buyers verification) 14-1/2 “ swing over bed ways, 12-3/8” swing over carriage, 6” swing over cross slide. Machine can use Gang type tooling or quick change tooling with tailstock. Positioning: +/- 0.000080”, repeatability: +/- 0.000040”, spindle run out 0.000050” TIR. Programmable spindle speeds up to 4,000 rpm. Constant Surface Speed. Alloy steel used on full bed-width bearing surface with dovetail design. Over size cross slide for extra rigidity. Oversized preloaded ball screw supported at both ends by angular contact bearings. AC servo motors for X and Z axis travel. Anilam Model 4200T 2 axes CNC control. Full CNC operation and complete manual operation. Manual operation offers 1 hand wheel 2 axes simultaneous movement for cutting taper. Make first part manually, subsequent parts automatically (teach-in function). G-code or conversational programming. 2 front mounted electronic hand wheels (MPG). Pneumatic power 5C collet closer (standard). Automatic lube system with low level alarm. CNC threading with multiple leads capability. 5 HP spindle motor. "Hardinge-style" lathe 1118H CNC CAPACITY: Swing over bed 14.5" Swing over carriage 12.37” Swing over cross slide 6” Tool Height 1/2" Tooling Plate Size 7.5" x 12" (7.5"x15" opt.) Maximum X-Axis Travel 9" (12" opt.) Maximum Z-Axis Travel 5" (8" opt.) Feed Rate 200 ipm Rapid Traverse 500 ipm Carriage Base Movement (Manual) 13.4" Drive System (X & Z Axis) AC Servo Drive Linear Guideway System 25mm by NSK Ballscrews 20 mm (3/4"), C3 Precision Ground SPINDLE Spindle Speed Range (Programmable) 100-4,000 rpm Spindle Through Hole 1-1/16" Spindle Collet, Chuck 5C Spindle Motor 5HP Accuracy Positioning +/- 0.00008" Repeatability +/- 0.00004" Spindle TIR 0.00005" CNC CONTROL Anilam Model 4200T PC based, 3.5" floppy drive, Conversational or G-code programming. GENERAL Electricity 220v, 60hz, 3 phase Coolant Pump Motor 0.25 HP Net Weight (approx) 2,700 lbs Complete With: All Available Manuals Various Tooling Price.....................................$14,500 sold as is as inspected

Specifications

ManufacturerSharp 1118H-CNC 11x18 CNC Toolroom Lathe W/ Anilam 4200T
Model118H
Year2001
ConditionUsed
Serial Number901003
